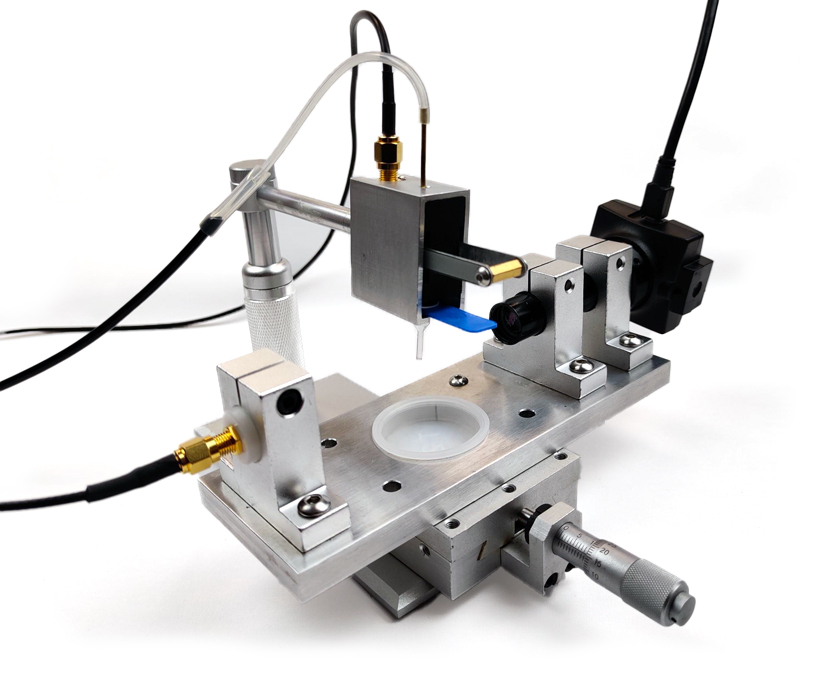

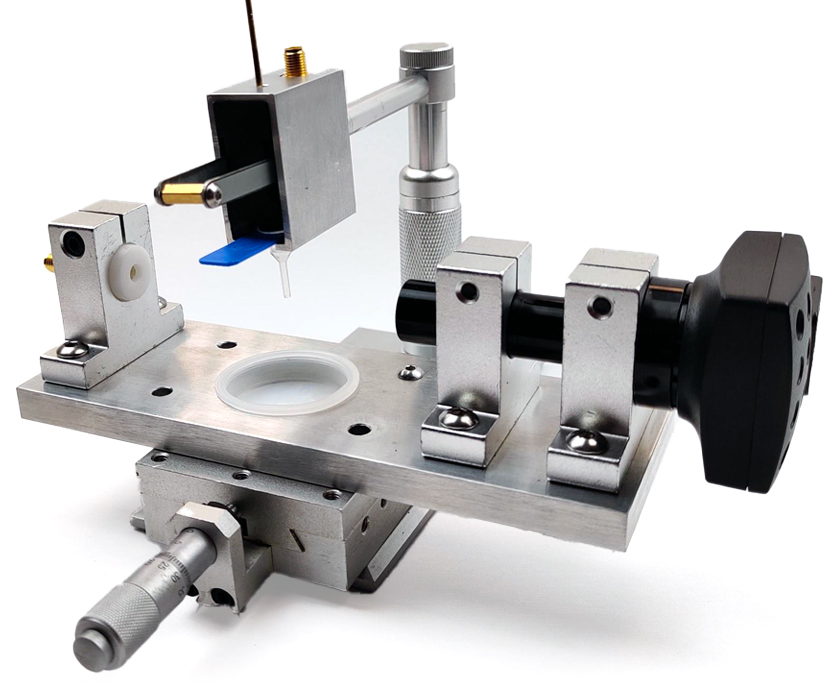

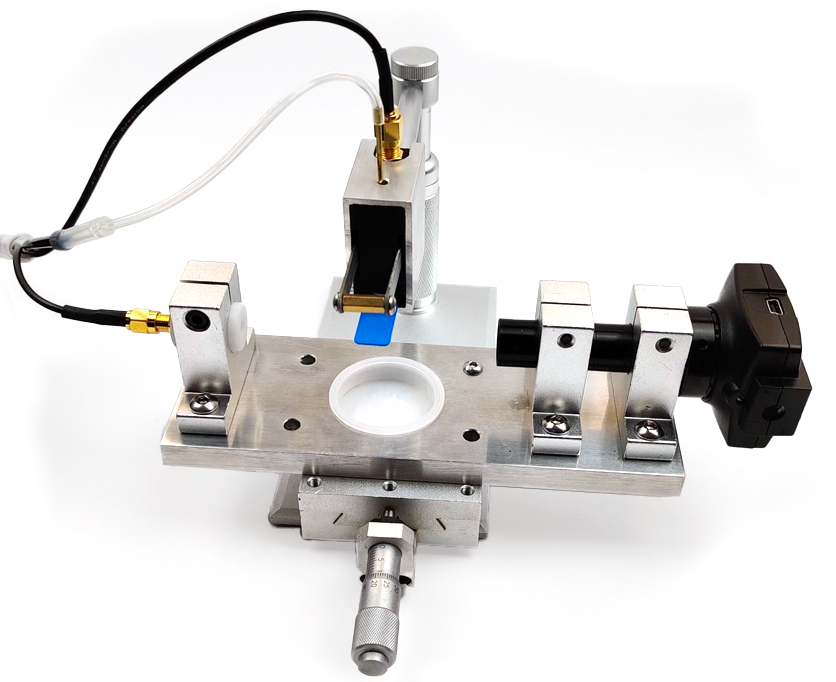

Manual Control Dispensing System

Most intuitive microdrop dispensing system designed to accelerate research and development applications.

Compact microdrop dispensing system. Intuitive and simplified user interface, which empowers the user. Compatible with an optional drop-watch-camera system.

Download Brochure

Features & Benefits
User friendly intuitive microdrop dispensing system
Simplified generation of microdroplets which puts you in control.
Droplet generation from multiple trigger sources
Microdrop trigger sources including: internal frequency source; external trigger pulse; and manual single microdrop dispense button.
Synchronised stroboscopic light source output
System includes stroboscopic light source output, which can be used in conjunction with an optional drop-watch-camera.

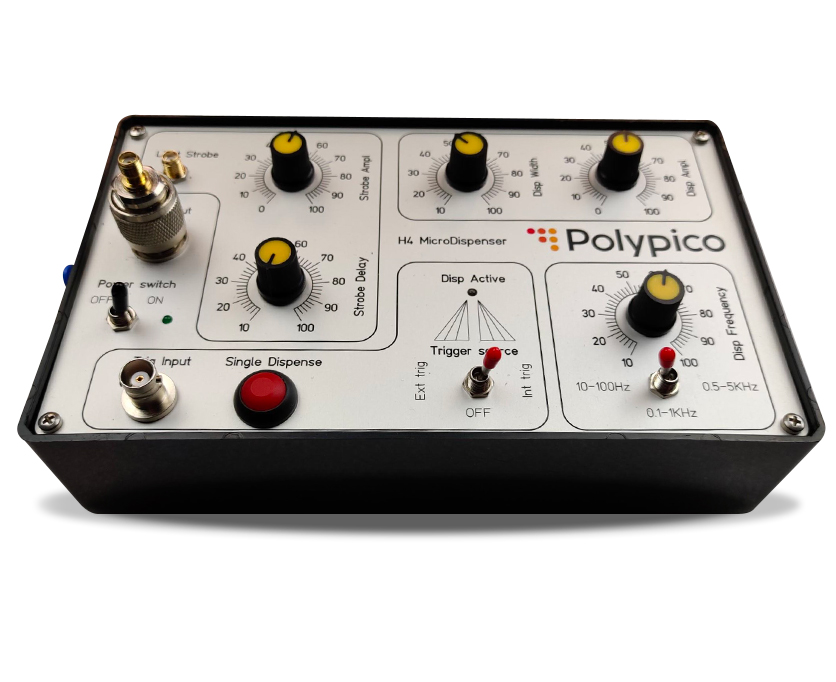

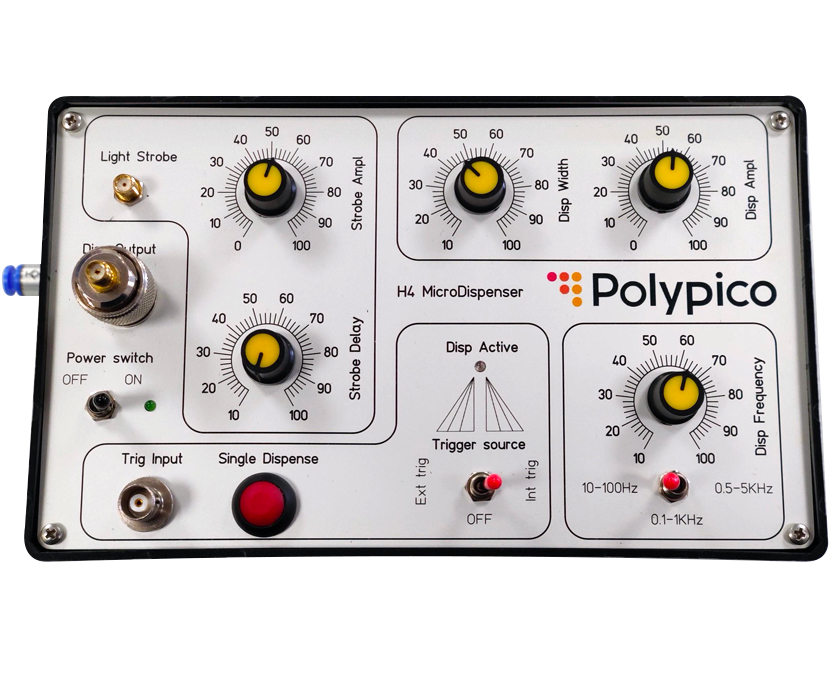

Compact system designed to simplify research and development
Compact control system for the robust and reliable generation of picolitre microdrops.
Affordable system
An accessible microdrop dispensing systems – simple, reliable, and cost effective.
Patented disposable dispensing cartridge technology
No cross-contamination by design, change fluids in a matter of minutes, no wastage of precious fluids, with a nozzle anti-clogging feature.
1-year & extended warranties
Includes a 1-year parts and labour, return to factory warranty. Option to extend the warranty for 3 to 5-years also available.
Frequency ranges (internal source)
0 – 100Hz; 100Hz – 1kHz; 500Hz – 5kHz
Dispense trigger sources
Internal source; external source; push button single shot
Dispense pulse parameters
Amplitude; width; frequency
Strobe pulse parameters
Strobe pulse delay relative to dispense event; strobe pulse amplitude
External trigger source
Low level 1v; high level 4v
Optional drop-watch-camera
Stroboscopic camera accessory
Applications & Materials

Proven to deliver for a wide range of applications and materials, including:

Microdrop generation
Dispensing of living cells
Dispensing of inks
Dispensing of nano-materials
Dispensing of active pharmaceutical ingredients
Dispensing of DNA; mRNA; proteins; antibodies; etc.
Dispensing of organic/inorganic compounds
Dispensing of cyanoacrylate (super glue)

Additions, upgrades and replacement parts.

A wide range of accessories including cameras, dispensing cartridges, maintenance kits and more.

Filling bridge with a cartridge for microdispensing applications
Product Range

Off-the-shelf, customised and OEM solutions.

Pick an off-the-shelf system or collaborate with our team of dispensing specalists to get the ideal solution for your application.

Pico E Entry level microdispensing system
