Electrodynamic Cage Traps

State-of-the-art electrodynamic quadrupole cage traps for non-contact levitation, excitation and analysis of drops.

Advanced benchtop instrumentation for the analysis of droplets, aerosols and other particulate in the order of microns to tens of microns in diameter. Applications include aerosol characterisation, atmospheric chemistry/dynamics, biological research analyses or particle analyses by laser diffraction.

Download Brochure

Features & Benefits Specifications Applications & Materials

Features & Benefits

Simple droplet generation combined with electrodynamic levitation

Seamlessly utilise PolyPico patented droplet generators to generate samples for the electrodynamic cage trap.

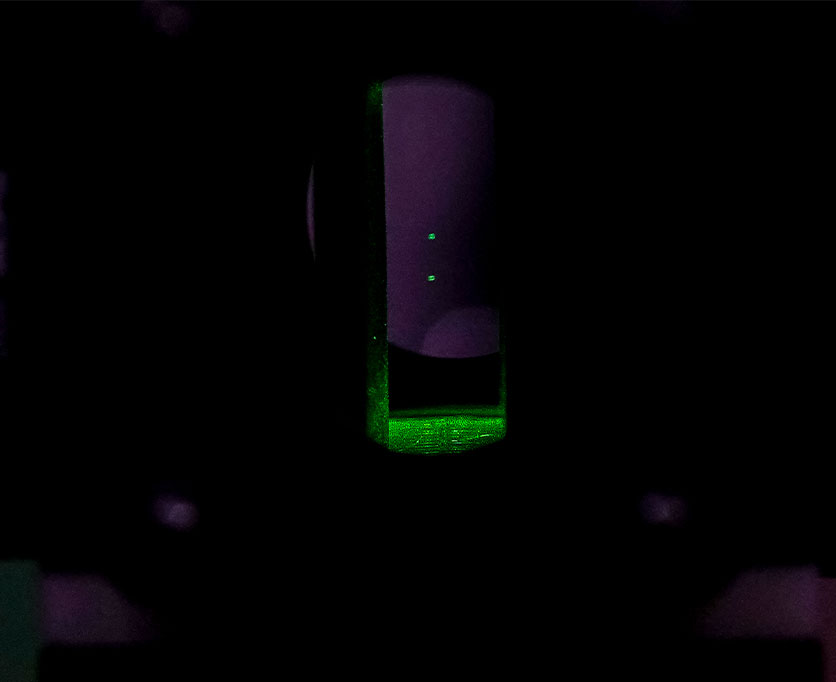

Accurate sample positioning

Holding rings allows for precise vertical placement of droplets in the observation chamber.

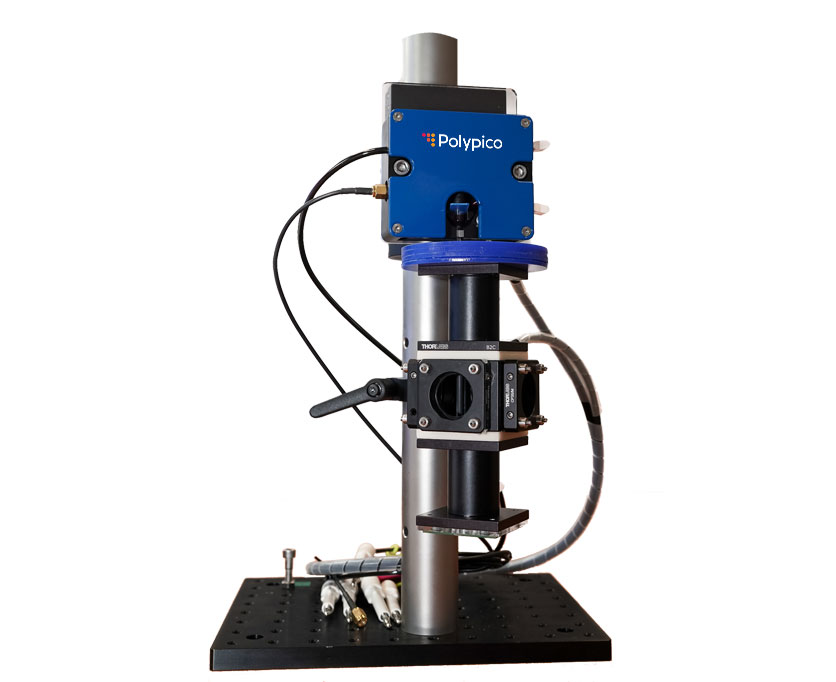

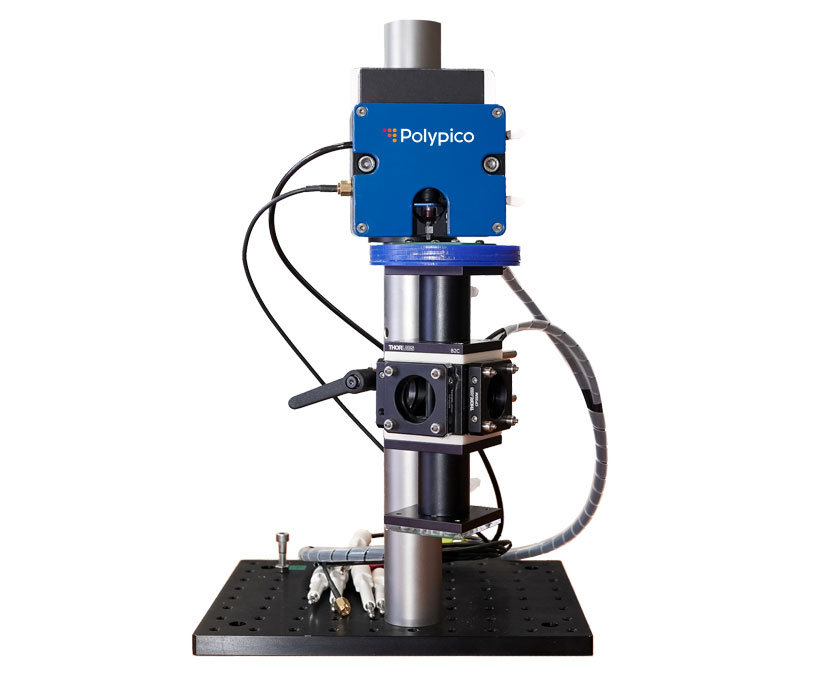

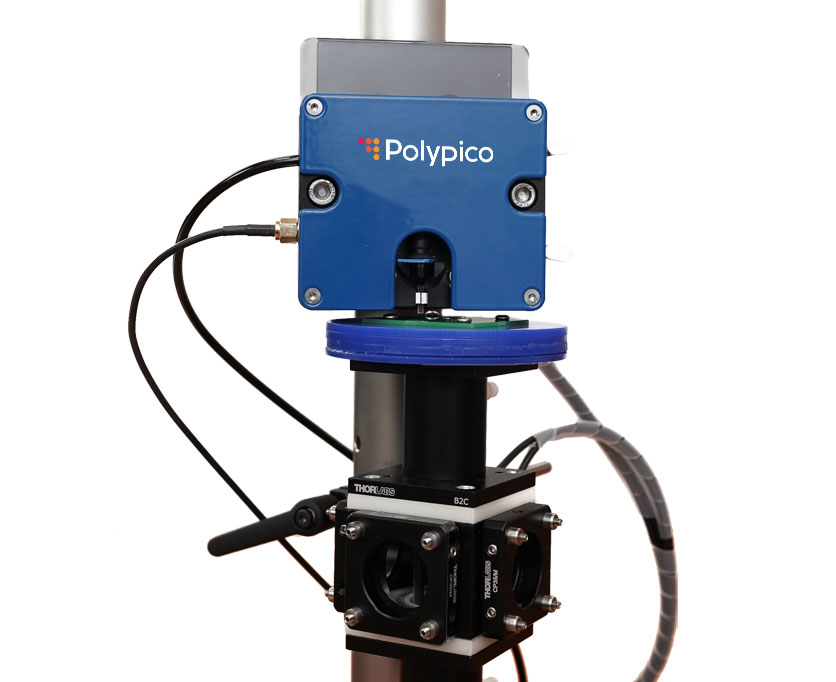

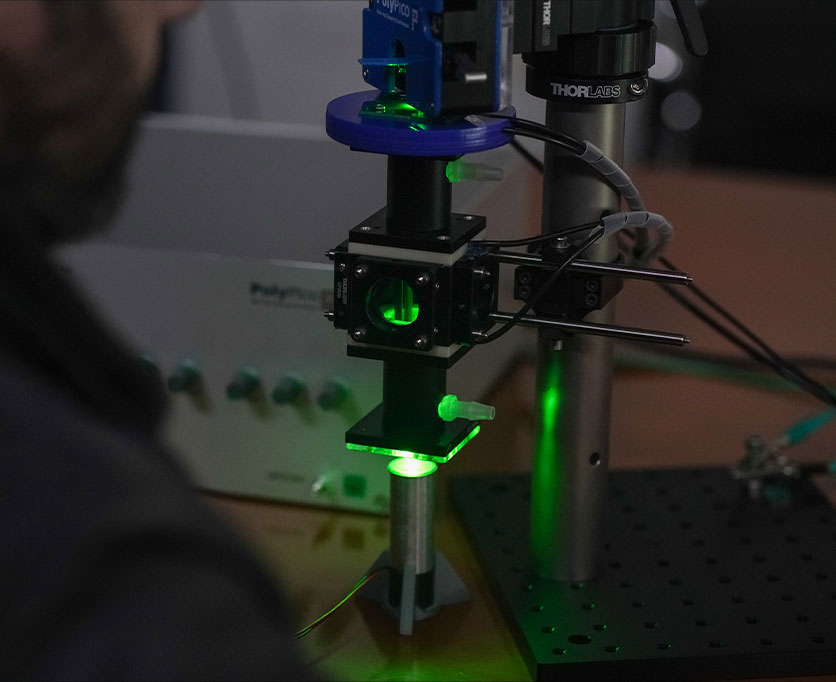

Four port viewing chamber

Multiple optical excitation sources and spectral analysis instruments can simultaneously analyse samples.

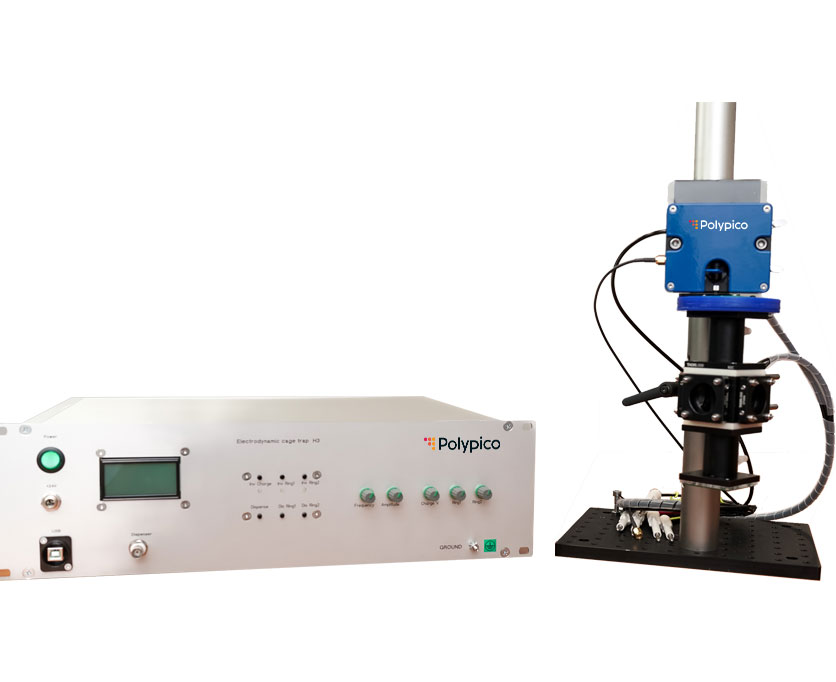

Integrated control system

Compact control system for control of dispensing and the electrodynamic cage trap parameters.

Optional integration with Polypico microdispensing head

The electrodynamic cage trap can be supplied whereby it shares a microdispensing head with a Polypico microdispensing platform, thus allowing the benefits of having a microdispensing instrument and a electrodynamic cage trap.

Humidity control (user implemented option)

The cage trap includes ports for the user to implement their own bespoke humidity control strategy.

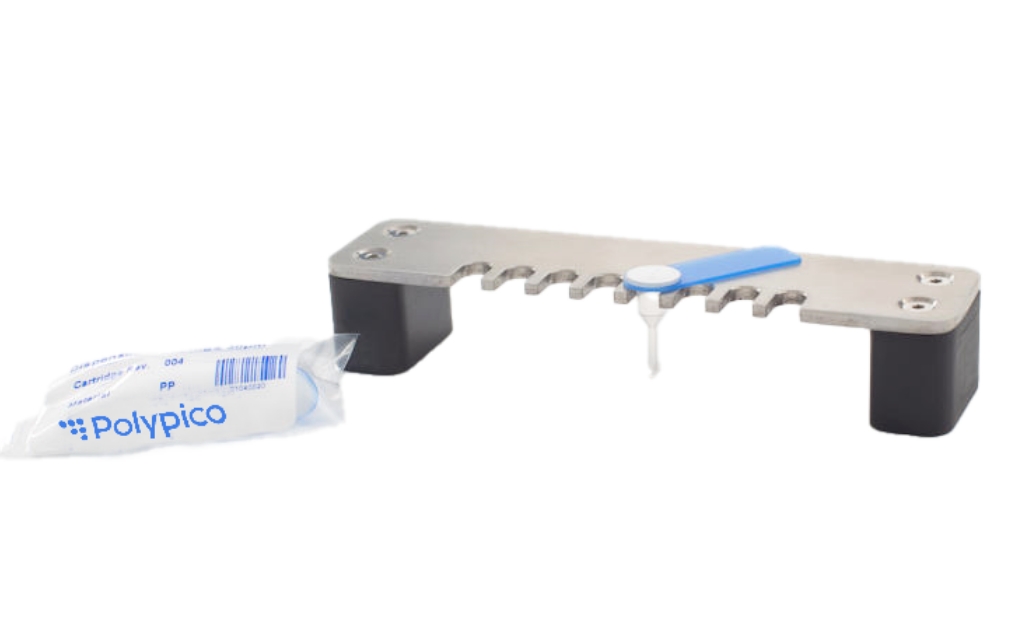

Patented disposable dispensing cartridge technology

No cross-contamination by design, change fluids in a matter of minutes, no wastage of precious liquids, with a nozzle anti-clogging feature.

More about our disposable cartridges

1-year & extended warranties

Includes a 1-year parts and labour, return to factory warranty. Option to extend the warranty for 3 to 5-years also available.

Specifications

Levitated droplet size

Application specific (fluid dependant). Typical range: 5pl to 100pl

Holding Rings

Trap electrode voltages

Frequency and amplitude adjustable

Dimensions of Electrodynamic Trap

Approx: 30cm x 30cm x 40cm

Weight

Approx: 5Kg

Applications & Materials

Proven to deliver for a wide range of applications and materials, including:

Drop analysis

Aerosol analysis

Air-born virus transmission research

Nano particle research

Atmospheric chemistry

Crystal analysis

Non-contact chemistry / biology

Single Cell analysis

Multi-spectral analysis of particulate matter

View More Applications & Materials
